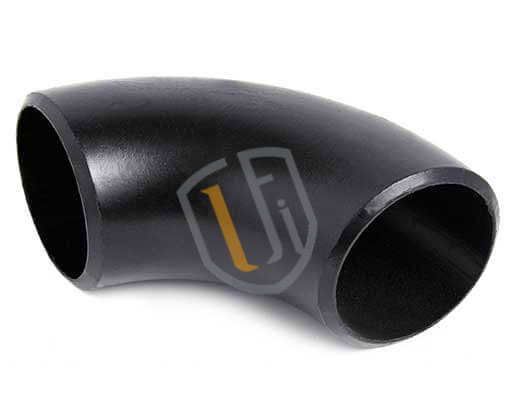

Carbon Steel 90 Degree Long Radius Elbow

Carbon Steel A234 WPB 90 Deg Long Radius Elbow Supplier, ANSI B16.9 90 Degree Long Radius Elbow, ASME B16.9 90 Degree Carbon Steel Elbow, 90 Degree Elbow, 90 Degree Elbow Suppliers.

90 Degree Long Radius ElbowThe primary purpose of 90 Degree Elbows is their ability to change flow direction in plumbing systems. They ensure smooth transitions between pipes, allowing water or other fluids to navigate corners effortlessly. This flexibility eliminates the need for complicated pipe layouts, making installations and repairs more convenient.


At United Forge, we offer a wide selection of 90 Degree Long Radius Elbows, specifically designed to meet the demands of different industries. Our carbon steel 90 degree elbow fittings are known for their durability and resistance to corrosion, making them ideal for residential and industrial applications. Whether you are working on a plumbing project or require fittings for a complex industrial system, our carbon steel elbow will provide the reliability and performance you need.


Our range of plumbing supplies includes Carbon Steel 90 Degree Long Radius Elbow in various sizes and materials to accommodate different requirements. From small-scale residential projects to large-scale industrial installations, we have the fittings to suit your needs. We understand that each project is unique, and our team of experts is available to assist you in selecting the right fittings based on your specifications.


When choosing ANSI B16.9 90° Long Radius Elbow, it is essential to consider factors such as pipe material, pressure rating, and temperature requirements. Our fittings are designed to meet industry standards and undergo rigorous quality checks to withstand demanding conditions. In addition to their functional benefits, elbow 90 degree long radius also contribute to the overall aesthetics of a plumbing system. Their sleek design and smooth finish add a professional touch to any installation. Our ASME B16.9 90 Degree Elbow will enhance the visual appeal of your system while maintaining efficient flow.


United Forge is a prominent manufacturer and supplier of diverse range of 90 Degree Long Radius Elbows and other industrial fittings to cater to your needs. Explore our collection today and discover the perfect fittings to optimize your performance and efficiency. We also offer ASTM A420 Carbon Steel Elbow, WPL6 90 Deg Elbow Long Radius Pipe Fittings which are manufactured in various size, standards, class and specifications. Dedicated to serve the needs and requirements of our valuable clients, we also make these CS A234 WPB 90 Deg Elbow Long Radius Pipe Fittings available in customized shapes and sizes.


What is the difference between a 45° and 90° elbow?

The main difference between a 45° and 90° elbow is the angle of the change in direction. A 45° elbow creates a 45-degree angle, while a 90° elbow creates a right angle (90 degrees) between the connected pipes or tubes.


What are the advantages of using carbon steel elbows?

Carbon steel elbows offer excellent strength, durability, and resistance to corrosion, making them suitable for various industrial applications. They can withstand high-pressure and high-temperature conditions.

SPECIFICATION

Specifications: ASTM / ASME A234, A420, A860, A403

Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size: Seamless Elbow ( 1/2″~24″), ERW / Welded / Fabricated Elbow (1/2″~48″)

Type: Seamless / ERW / Welded / Fabricated

Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Form: 90° LR

Carbon Steel: A234 WPB, A420 WPL6, A860 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70.

Stainless Steel: A403 304, 304L, 310, 316, 316L, 317, 317L.

CS A420 WPL6 90 Deg Long Radius Elbow, ASTM A234 WPB 90 Degree Long Radius Elbow Manufacturer in Mumbai India, CS A234 WPB 90 Deg Long Radius Seamless Elbow, CS A234 WPB 90 Degree Long Radius Elbow, CS 90 Deg Long Radius Elbow Dealer in India.

ANSI B16.9 90 Degree Long Radius Elbow Dimensions

90 DEG LONG RADIUS ELBOWS (R = 1,5 ND) ANSI B 16.9 dimensions
inches ND mm Center to center Radius Center to end Back to face
D O A B K
1/2 15 21,34 76,20 38,10 15,87 47,62
3/4 20 26,67 57,15 28,57 11,11 42,86
1 25 33,40 76,20 38,10 22,22 55,56
1 1/4 32 42,16 95,25 47,60 25,40 69,85
1 1/2 40 48,26 114,30 57,15 28,57 82,55
2 50 60,32 152,40 76,20 34,92 106,40
2 1/2 65 73,02 190,50 95,25 44,45 131,80
3 80 88,90 228,60 114,30 50,80 158,75
3 1/2 90 101,60 266,70 133,35 57,15 184,15
4 100 114,30 304,80 152,40 63,50 209,55
5 125 141,30 381,00 190,50 79,38 261,90
6 150 168,27 457,20 228,60 95,25 312,70
8 200 219,07 609,60 304,80 127,00 414,30
10 250 273,05 762,00 381,00 158,75 517,50
12 300 323,85 914,40 457,20 190,50 619,10
14 350 355,60 1066,80 533,40 222,25 711,20
16 400 406,40 1219,20 609,60 254,00 812,80
18 450 457,20 1371,60 685,80 285,74 914,40
20 500 508,00 1524,00 762,00 317,50 1016,00
22 550 558,80 1676,40 838,20 342,90 1117,60
24 600 609,60 1828,80 914,40 381,00 1219,20
28 700 711,20 2133,60 1066,80 441,90 1422,40
Dimensions in mm.

Carbon Steel 90 Deg Long Radius Elbow Price

SR NO Description Piping Material Class / QTY PRICE (USD$)
1 90° ELBOWS: 16 NPS, ASTM A234-WPB, SMLS, BE, SCH20, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E 25 NOS $12.00
2 90° ELBOWS: 10 NPS, ASTM A234-WPB, SMLS, BE, SCH20, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E 39 NOS $85.00
3 90° ELBOWS: 8 NPS, ASTM A234-WPB, SMLS, BE, SCH40, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A03E 16 NOS $96.00
4 90° ELBOWS: 8 NPS, ASTM A234-WPB, SMLS, BE, SCH20, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E 12 NOS $14.00
5 90° ELBOWS: 6 NPS, ASTMA 234-WPB, SMLS, BE, SCH40, LR, NACE MR-0175/ISO 15156, ASME B16.9 A01E/A03E 63 NOS $15.00
6 90° ELBOWS: 4 NPS, ASTM A234-WPB, SMLS, BE, SCH40, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E/A03E 307 NOS $14.00
7 90° ELBOWS: 3 NPS, ASTM A234-WPB, SMLS, BE, SCH40, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E/A03E 94 NOS $32.00
8 90° ELBOWS: 2 NPS, ASTM A234-WPB, SMLS, BE, SCH80, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E/A03E/A06E 105 NOS $85.00
9 90° ELBOWS: 8 NPS, ASTM A234-WPB, SMLS, BE, SCH40, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A03E 16 NOS $89.00
10 90° ELBOWS: 8 NPS, ASTM A234-WPB, SMLS, BE, SCH20, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E 10 NOS $52.00
11 90° ELBOWS: 6 NPS, ASTM A234-WPB, SMLS, BE, SCH40, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E/A03E 38 NOS $11.00
12 90° ELBOWS: 4 NPS, ASTM A 234-WPB, SMLS, BE, SCH40, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E/A03E 40 NOS $11.00
13 90° ELBOWS: 3 NPS, ASTM A234-WPB, SMLS, BE, SCH40, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A01E/A03E 13 NOS $25.00
14 90° ELBOWS: 8 NPS, ASTM A234-WPB, SMLS, BE, SCH80, LR, NACE MR-0175/ ISO 15156, ASME B16.9 A06E 13 NOS $14.00

Types of Long Radius 90 Degree Elbow

Carbon Steel A234 WPB 90 Deg Long Radius Elbow

Carbon Steel A234 WPB 90 Deg LR Elbow

Carbon Steel A420 WPL6 90 Deg Long Radius Elbow

Carbon Steel A420 WPL6 90 Deg LR Elbow

CS WPL6 90° Long Radius Elbow

CS WPL6 90° Long Radius Elbow
